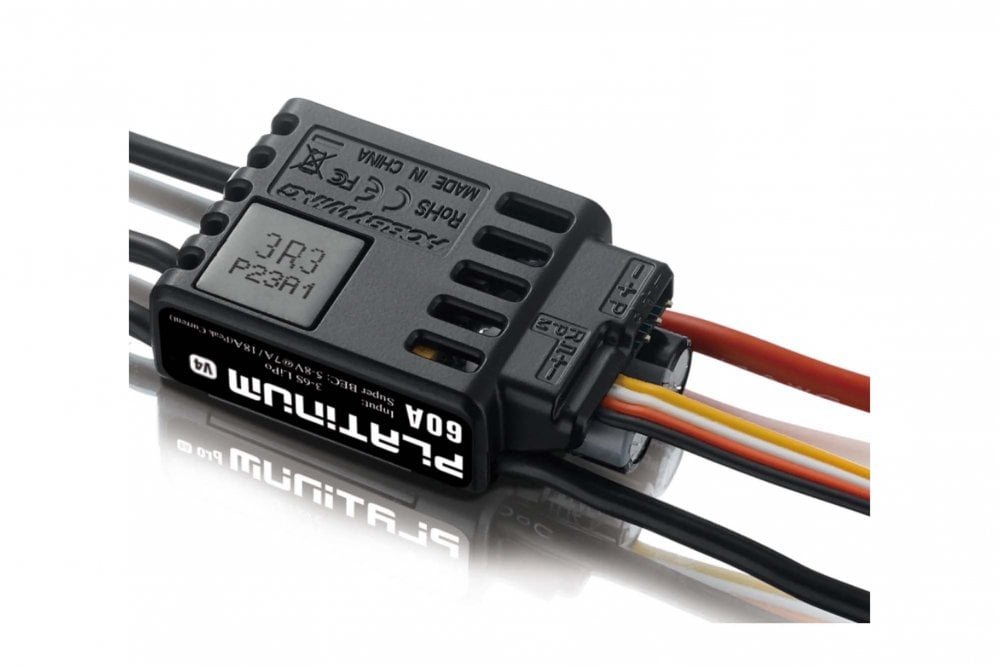

Hobbywing - Platinum 60A 3-6S V4

Code: HBW-03-13-Platinum-60A-3-6s-V4

Hobbywing Platinum 60A, 3-6s with 5V-8V BEC

Specifications:

• Model: Platinum 60A ESC V4

• Application: 450-480 Class Heli (Propeller 325-360mm)

• Input Voltage: 3-6s Lipo

• Control/Peak Current (10s): 60A/80A

• PWM: 18KHz

• Switch Mode BEC: 5V-8V Adjustable (Step: 0.1V), 7A/18A Cont./Peak

• Separate Programming Port: For connecting LCD Program Box/WiFi Express

• Throttle Signal/BEC OutputRPM Signal Transmission Wire: White Throttle Signal Wire Red/ & Black BEC Output Wires/ Yellow RPM Signal Transmission Wire

• Input Wires: Red- 14AWG-100mm x1/Black-14AWG-100mm x1

• Output Wires: Black-14AWG-75mm x3

• Output Connectors: 3.5mm Gold Connectors (Female)

• Weight: 49g

• Size: 48x30x15.5mm

Package contains:

 1x Platinum 60A V4
