SIYI Technology SIYI- HM30 Long Range Full HD Transmission System
Code: SIYI-HM30 (*UN3481*)
SIYI - HM30 Long Range Full HD Transmission System
Overall
Max Transmission Range
30 km
(Unobstructed, free of interference)
Channels
16 communication channels
Datalink Compatible Flight Controllers
PX4 / ArduPilot Open-Source Flight Controllers:
SIYI N7, etc.
INAV Open-Source Flight Controllers
Video Stream Compatible GCS (Android)
SIYI Factory Apps:
SIYI FPV
Open-Source GCS:
QgroundControl
Mission Planner
Video Stream Compatible GCS (Windows)
Open-Source GCS:
QGroundControl
Mission Planner (H264 only)

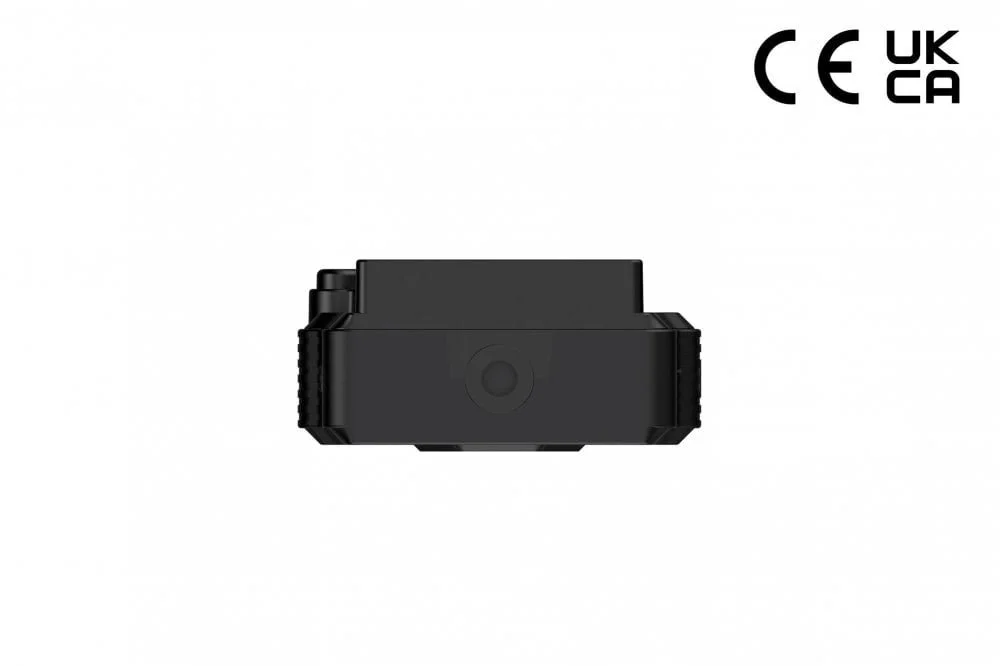

Ground Unit
Monitor
0.96-inch OLED Display
Compatible Battery Type
NP-F550 / F750 / F950 Series Quick Release Batteries
(HM30 fly more combo comes with NP-750 quick release battery)
Fast Charging Protocol
PD 30W
Antenna Gain
Standard Omni Antenna: 5 dBi
Standard Long Range Antenna: 11 dBi
(Optional) Lollipop Antenna: 5 dBi
Interface & Ports
S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)
Datalink Output: UART (GH1.25 4-pin)
Ethernet Port: LAN (GH1.25 4-pin)
Power Output: VCC (GH1.25 4-pin, without bucket)
GCS Datalink Communication: Type-C
Firmware Upgrade: Type-C
Charge: Type-C
Power Input: PWR (XT30)
Tripod Connector: 1/4-inch Screw Hole
Product Dimensions (Battery and antennas excluded)
109 x 61 x 28 mm
Product Dimensions (Battery and antennas excluded)
132 g
Waterproof Level
IP53
Working Temperature
-10 ~ 50℃
Air Unit
Signal Output
16 channels of S.Bus
5 channels of PWM
Interface & Ports
S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)
Datalink (to FC): UART (GH1.25 4-Pin)
PWM Channel 1 to 5: PWM (GH1.25 6-Pin)
Video Input / Network Communication: LAN (GH1.25 8-Pin)
Firmware Upgrade: Type-C
Antenna Gain
Omni Antenna: 5 dBi (Standard)
Lollipop Antenna: 5 dBi (Optional)
Working Voltage
HM30 Air Unit:
3S ~ 6S / 12.6 ~ 25.2 V
4S to 18S Power Module (Optional):
16.8 ~ 75.6 V
Power Consumption
HM30 Air Unit:
- Average: 2.8 W
- Summit: 12 W
HM30 Air Unit + 4S to 18S Power Module:
- Average: 3.2 W
- Summit: 12 W
Dimensions (Antenna Excluded)
70 x 55 x 16 mm (fan included)
Weight (Antenna Excluded)
HM30 Air Unit:
74 g
HM30 Air Unit + 4S to 18S Power Module:
109 g
Working Temperature
-10 ~ 50℃
R1M Recording FPV Camera (Optional, packed with both HM30 combos)
Video Output Port
Ethernet
Image Sensor
1/2.9 Inch, 2 MP
FOV
Diagonal: 90°
Horizontal: 80°
Working Voltage
12 V
Power Consumption
2.5 W
Video Recording Resolution
1080p (1920*1080) @ 30 fps
720p (1280*720) @ 30 fps
Recording Bitrate
12 Mbps
Video Recording Format
MP4
Supported TF / SD Card Type
MicroSD Class10
Less than 32GB
File Storage Format
FAT32
Dimensions
42 x 42 x 25 mm
Weight
23 g
Working Temperature
-10℃ ~ 50℃
