Code: TBS-TOP-CAP2-PNP
TBS - Caipirinha 2 -PNP
The Caipirinha II is based on the Wipeout by HappyFlyers from Switzerland! A polycarbonate battery bay, push-to-open equipment bays, a PDB with up to 3 battery inputs, wiring channels that stretch across the entire wing, a huge 6mm-plywood-lined center section are just some of the innovations that make this plane stand out from the rest. An ultra-sleek and aerodynamic finish ensure that no energy goes to waste, and a very good glide slope makes thermaling or long distance slopeing highly enjoyable.
The PNP kit from TBS is equipped with high quality, digital metal gear servos, a CP2814-1050kV Cobra motor, 50A HobbyWing ESC and high quality Aeronaut CAM Carbon folding propellers. Vertical climbs, rocket-like punch outs, or highly efficient cruising are all within the design parameters of this setup!
Small, lightweight, fly anywhere design
Ultimate in flight stability and endurance
Virtually indestructible EPP/Plywood construction
Pre-cut camera, servo, battery, R/C receiver and video transmitter slots
2x push-to-open equipment bays for R/C and FPV electronics
Pre-cut, sanded and covered ultra-lightweight elevons & pushrods

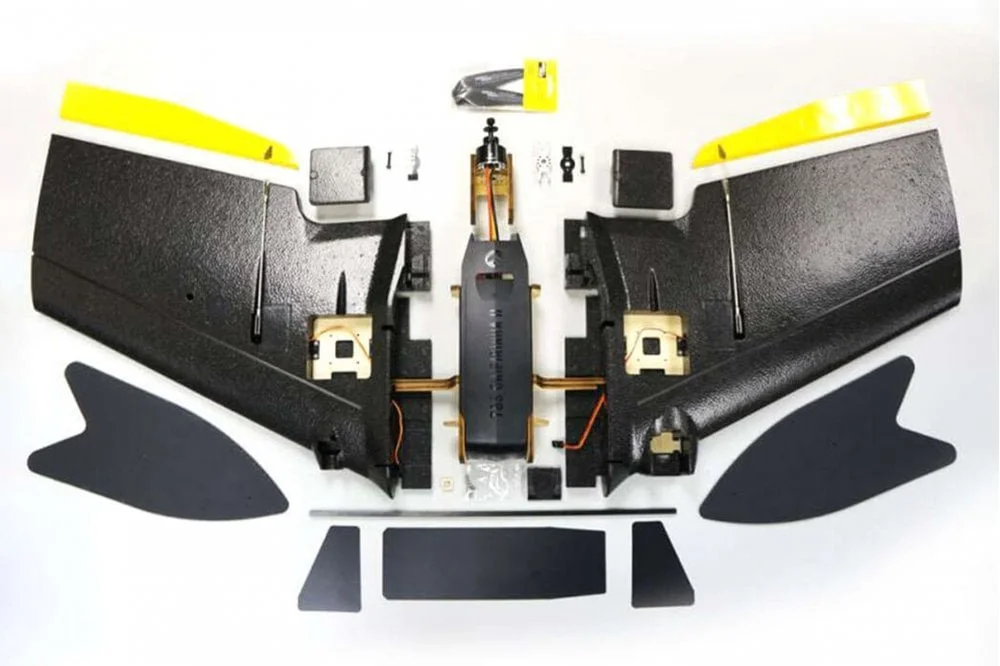

CAPIRINHA 2 with all hardware accessories
2x Digital MG Servo 6kgf/cm, 5-6V
CP2814-1050kV Cobra Motor
50A HobbyWing Skywalker Wing ESC
Aeronaut 10x6 folding prop with prop assembly (CNC aluminum)
Everything prepared as far as possible. Final assembly time around 2 hours.
36.5in / 93cm wingspan!
50oz / 1400g AUW (including GoPro Session5 and battery)
90min flying time
45mi / 75km endurance
Battery (4S):
Capacity: 4500mAh 4S - 6600mAh 4S, 20C or more
SUGGESTED Dimension: 48 x 36 x 150 mm, 525g
MAX Dimension: 60 x 44 x 165 mm, 550g
FPV camera: TBS ZeroZero II or TBS69
Video transmission:Crossfire Micro Rx or Diversity Rx
5.8GHz: TBS FPVision or TBS UNIFY PRO V3 with TBS CORE PRO
2.4GHz: TBS CORE PRO with Unify 500mW / 800mW VTx
